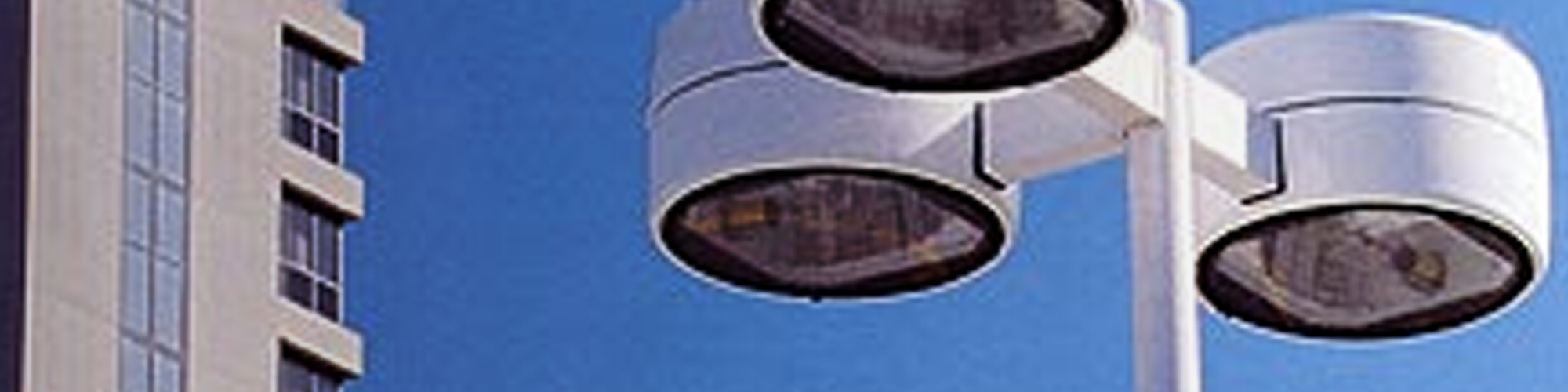

side-mounted cross arm brackets
Our CRS brackets are fabricated from mild carbon rectangular steel tubing with horizontal fixture mounting plates. They are designed to be side mounted to the pole shaft using U-bolts. U-bolts and mounting plate sizing is determined by the pole shaft size. Brackets are finished to match the pole.
Click on images for a more detailed view.
Product Line
- CRS-02
- 3.17'
- 2
- CRS-03
- 5.67'
- 3
- CRS-04
- 8.17'
- 4
- CRS-05
- 10.67'
- 5
- CRS-06
- 13.17'
- 6
| Catalog Number | Arm Span | Effective Projected Area | Fixture Quantity | Bracket Weight (lb) | Cutsheet | Template |
|---|---|---|---|---|---|---|
| CRS-02 | 3.17' | 1.9 | 2 | 49 | View | |
| CRS-03 | 5.67' | 2.6 | 3 | 77 | View | |
| CRS-04 | 8.17' | 3.3 | 4 | 104 | View | |
| CRS-05 | 10.67' | 4 | 5 | 131 | View | |
| CRS-06 | 13.17' | 4.75 | 6 | 160 | View |
